Standard Type
- Product Information
- Code
- LIPXX54100
- Catalog
- Li-Polymer Battery
- Other Details
To ask for a quotation, press
Product Introduction
Model : LIP7054100
Lithium Ion Polymer Cell
Standard Type
Nominal Voltage : 3.7V
Cut-off Voltage : 3.0V
Product details

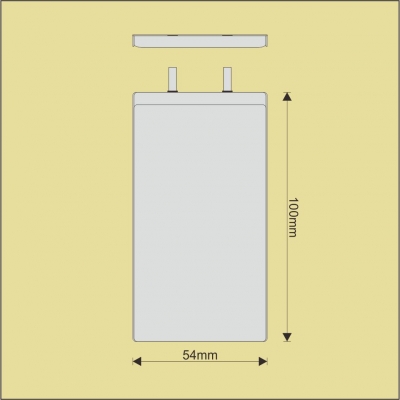

| Thickness (mm) | 3.0 - 10.0 |
| Width (mm) | 54 |
| Length (mm) | 100 |
Standard Charging : CC/CV – 0.2CmA/4.2V Max. 8 hrs to 0.05CmA
Quick Charging : CC/CV – 0.5CmA/4.2V Max. 3 hrs to 0.05CmA
Standard Discharging : 0.2CmA
Max. Discharging : Continuous : 0.5CmA, Pulse : 1CmA
Notation : LIPXX54100 : XX – Thickness (Variable)
Available in bare cell or battery pack assembled in series/in parallel with PCM, NTC, wire and connector
Standards (self-declare) :
1) UN38.3
2) 2013/56/EU
1) UN38.3
2) 2013/56/EU
3) IEC62133-2
4) RoHS
Remarks : We can arrange DG shipment for lithium batteries
