Product Introduction

Model : N1200SC N1300SC N1300SC(HP) N1300SC(HT) N1500SC N1500SC(HP) N1500SC(HT) N1500SC(XP) N1600SC
N1800SC N1800SC(HT) N2000SC N2000SC(HP) N2200SC

Nickel Cadmium (NiCd) Cell
Cylindrical Type
Size SC

Nominal Voltage : 1.2V
Cut-off Voltage : 1.0V

Product details

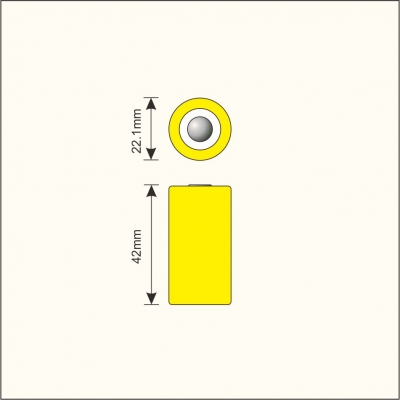

Diameter (mm) 22.1
Height (mm) 42

Standard Charging : CC – 0.1CmA x 14-16 hrs

Standard Discharging : 0.2CmA
Max. Discharging : Continuous : 1CmA, Pulse : 2CmA

Available in bare cell or battery pack assembled with PCB pins, tags, polyswitch, NTC thermistor, thermostat, wire and/or connector

Standards (self-declare) :
1) IEC61951-1
2) IEC62133-1
