Product Information
Code
NiCd AA
Catalog
Ni-Cd Battery
Other Details


To ask for a quotation, press


facebook

Product Introduction

Model : N600AA N700AA N800AA N900AA N1000AA N1100AA

Nickel Cadmium (NiCd) Cell
Cylindrical Type
Size AA

Nominal Voltage : 1.2V
Cut-off Voltage : 1.0V

Product details

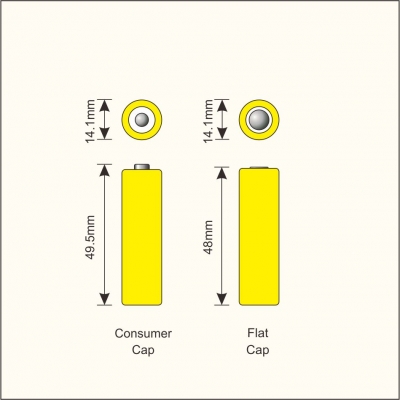

Diameter (mm) 14.1
Height (mm) 48

Standard Charging : CC – 0.1CmA x 14-16 hrs

Standard Discharging : 0.2CmA
Max. Discharging : Continuous : 1CmA, Pulse : 2CmA

Available in bare cell or battery pack assembled with PCB pins, tags, polyswitch, NTC thermistor, thermostat, wire and/or connector

Standards (self-declare) :
1) IEC61951-1
2) IEC62133-1
