Cylindrical Battery
- Product Information
- Code
- IFR18500
- Catalog
- Li-FePO4 Battery
- Min. Order Qty
- 1000(pcs)
- Other Details
To ask for a quotation, press
Product Introduction
Model : IFR18500 IFR18505 LFP18500 LFP18505
Lithium Ion Battery
Standard Type
Nominal Voltage : 3.2V
Cut-off Voltage : 2.0V
Capacity : 800mAh, 10000mAh
Product details

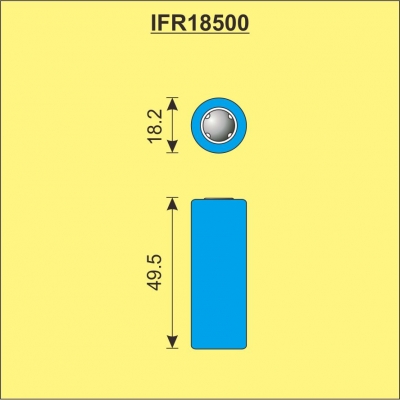

| Diameter (mm) | Max. 18.5 |
| Height (mm) | Max. 50.0 |
Standard Charging : CC/CV – 0.2CmA/4.2V Ref. 6.0 hrs to 0.05CmA
Quick Charging : CC/CV – 0.5CmA/4.2V Ref. 3.0 hrs to 0.01CmA
Standard Discharging : 0.2CmA
Max. Discharging : 3CmA
Available in bare cell or battery pack assembled in series/in parallel with PCM, NTC, wire and connector
Standards (self-declare) :
1) UN38.3
2) 2013/56/EU
1) UN38.3
2) 2013/56/EU
3) IEC62133-2
4) RoHS
Remarks : We can arrange DG shipment for lithium batteries
